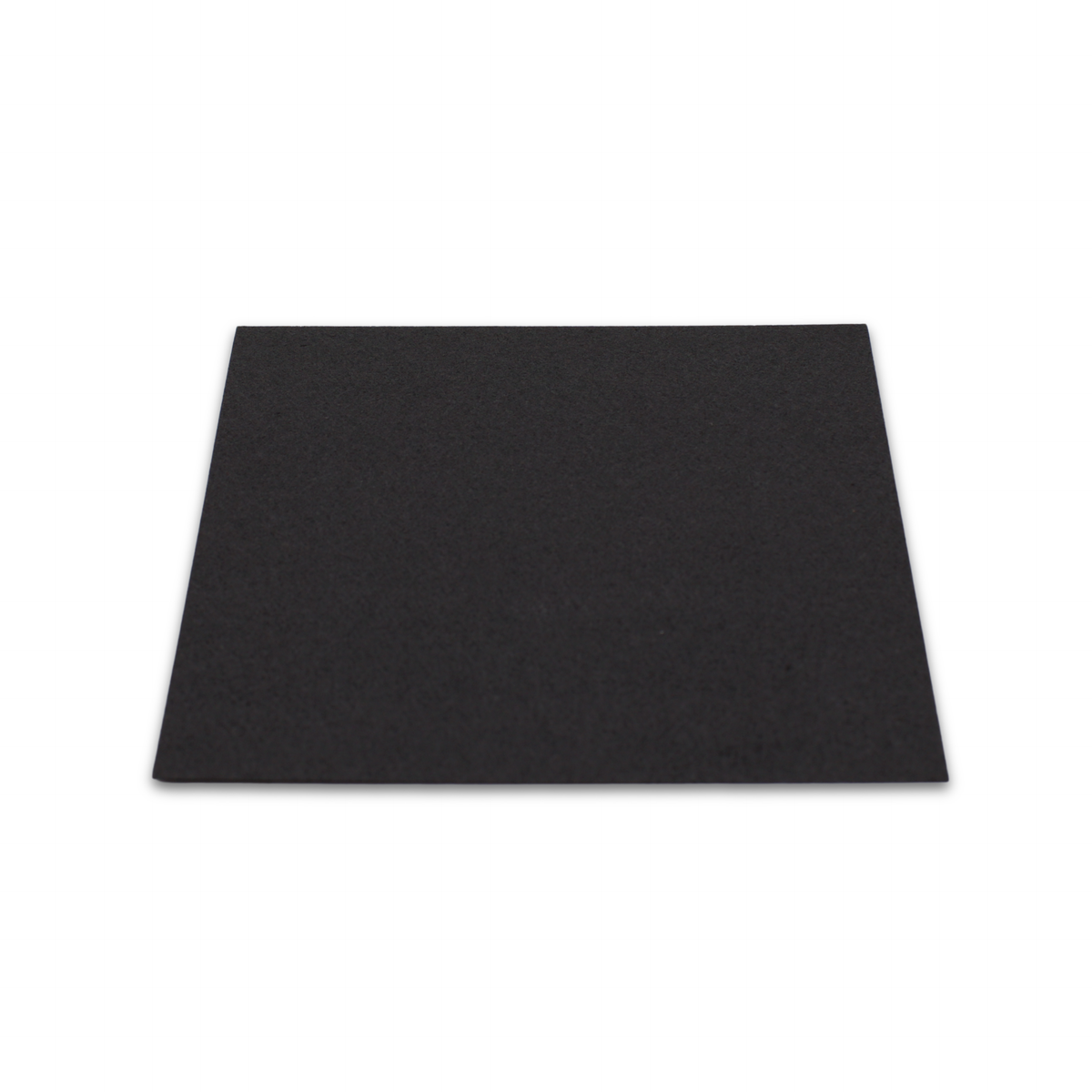

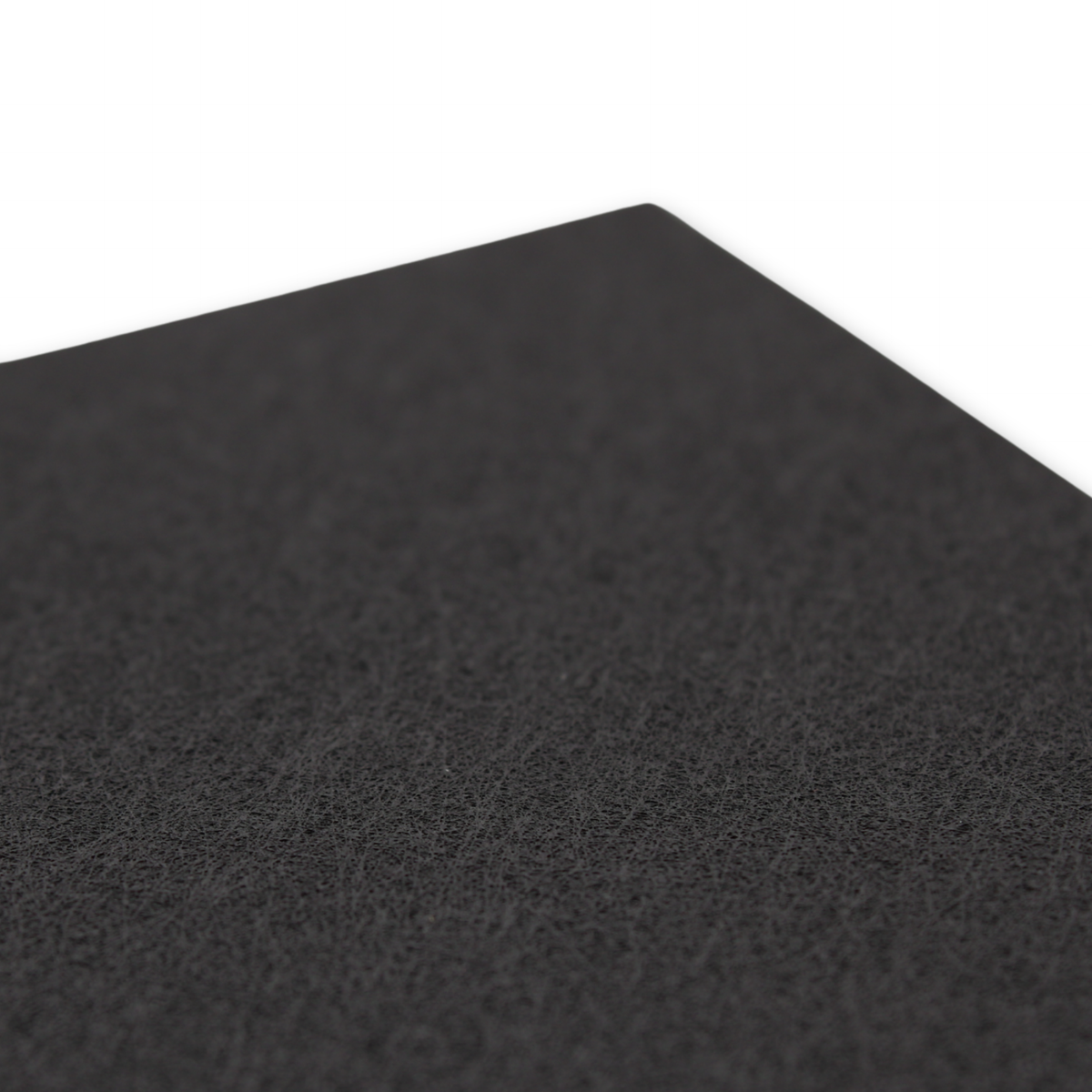

2 mg/cm² PtRu Carbon Paper GDE
A 2.0 mg/cm² platinum-ruthenium (PtRu) gas diffusion electrode on Sigracet 22 BB carbon paper (215 µm), the most popular GDE for direct methanol fuel cells (DMFC). The PtRu catalyst is designed to facilitate the methanol reaction. It includes a Nafion post-coat for improved water management and adhesion to the membrane.
Key specs
- Catalyst
- Platinum Ruthenium Black
- Catalyst loading
- 2 mg/cm²
- Catalyst metal
- Platinum, Ruthenium
- GDL material
- Carbon paper
- GDL model
- Sigracet 22 BB
- GDL thickness
- 215 µm
- Microporous layer (MPL)
- Yes
- Nafion post-coat
- Yes
- Application
- Direct methanol fuel cell (DMFC)
2 mg/cm² PtRu Carbon Paper GDE
Sale price$506.00
Description
The 2.0 mg/cm² Platinum Ruthenium on Carbon Paper is the most popular Gas Diffusion Electrode (GDE) for use in Direct Methanol Fuel Cells (DMFC). The Platinum Ruthenium (PtRu) catalyst is designed to facilitate the Methanol reaction to create an efficient DMFC. The Gas Diffusion Layer (GDL) used is Sigracet 22 BB, which is 215 microns thick. Other GDL materials are also available by custom request, as are custom sizes and loadings.
Includes a Nafion Post Coat for improved water management and adhesion to the membrane.
