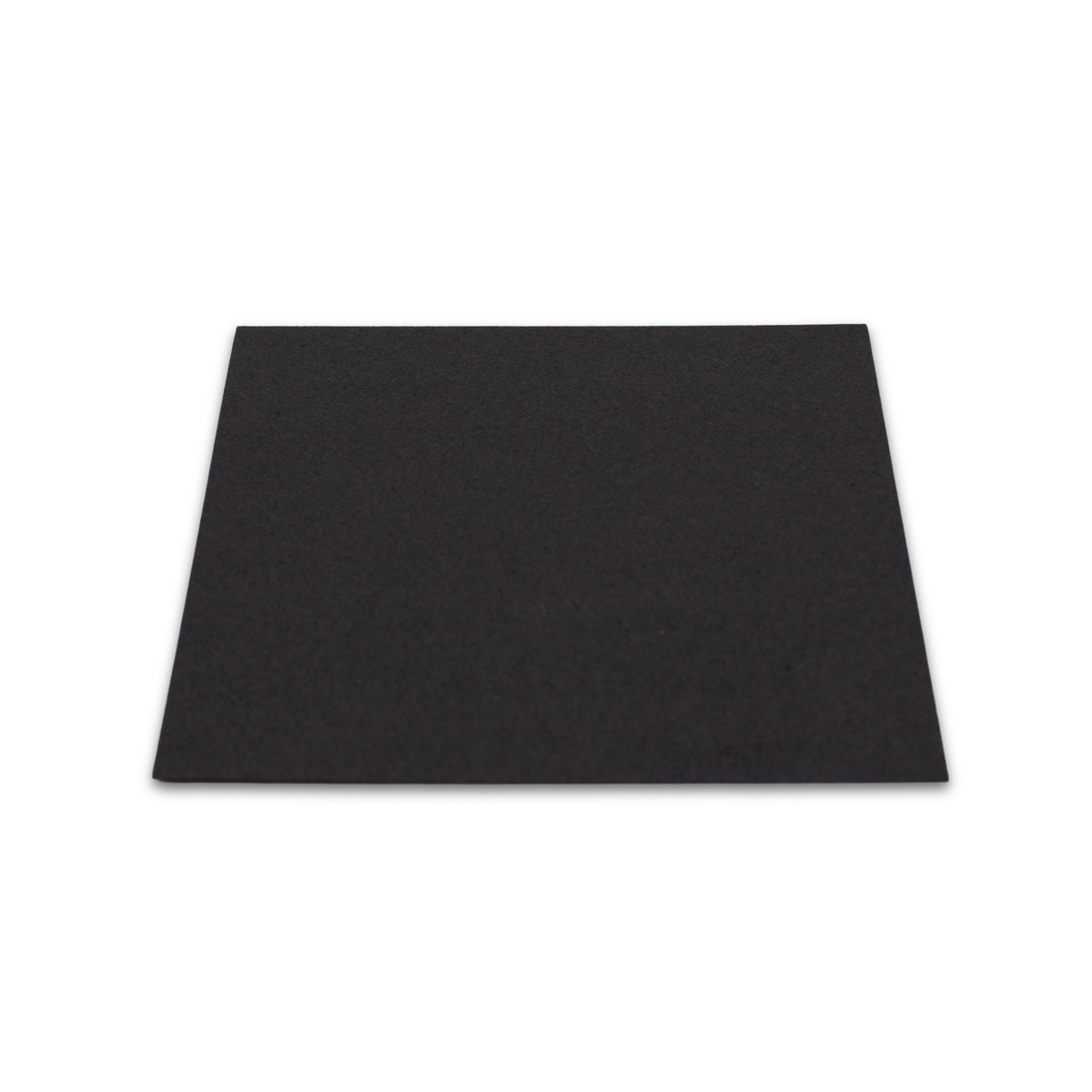

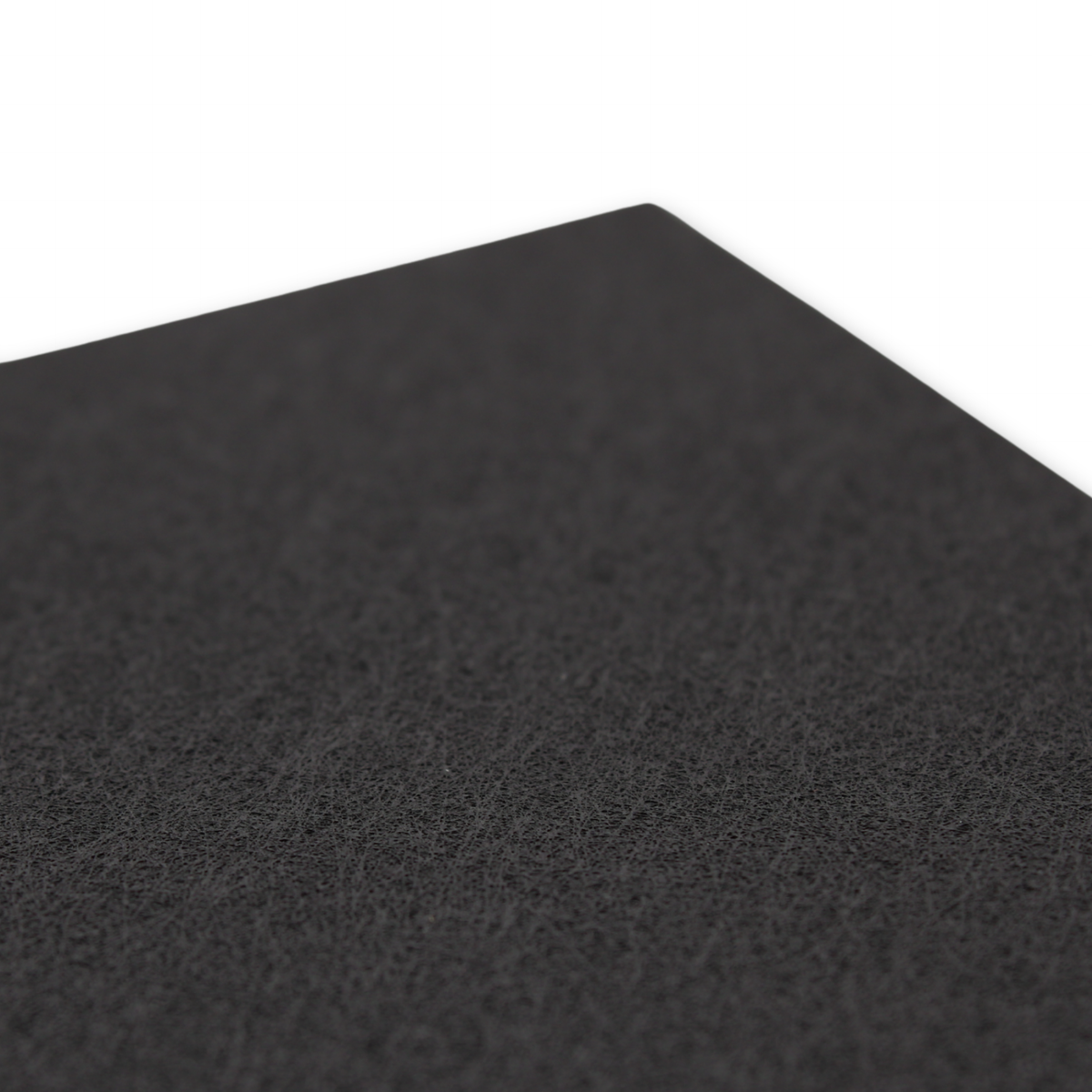

4 mg/cm² Pt Carbon Paper GDE
A high-performance, high-loading gas diffusion electrode with 4.0 mg/cm² platinum on Sigracet 22 BB carbon paper (215 µm), for applications where performance and efficiency are critical. It suits hydrogen/air and hydrogen/oxygen fuel cells, DMFCs, microbial fuel cells and other systems needing high platinum loadings. It includes a Nafion post-coat for improved water management and adhesion to the membrane.
Key specs
- Catalyst
- Platinum Black
- Catalyst loading
- 4 mg/cm²
- Catalyst metal
- Platinum
- GDL material
- Carbon paper
- GDL model
- Sigracet 22 BB
- GDL thickness
- 215 µm
- Microporous layer (MPL)
- Yes
- Nafion post-coat
- Yes
- Application
- PEM fuel cell, Direct methanol fuel cell (DMFC), Microbial / bio fuel cell
4 mg/cm² Pt Carbon Paper GDE
Sale price$441.00
Description
This 4.0 mg/cm² Platinum on Carbon Paper electrode is a high-performance, high platinum loading Gas Diffusion Electrode (GDE), typically used in applications where performance and efficiency are critical. This GDE is suitable for use in Hydrogen/Air Fuel Cells, Hydrogen/Oxygen Fuel Cells, Direct Methanol Fuel Cells (DMFC), Microbial Fuel Cells (MFC), or other electrochemical systems requiring high Platinum loadings. The Gas Diffusion Layer (GDL) used is Sigracet 22 BB, which is 215 microns thick. Made with XT Catalysts.
Includes a Nafion Post Coat for improved water management and adhesion to the membrane.
Other GDL materials are also available by custom request, as are custom sizes and loadings.
