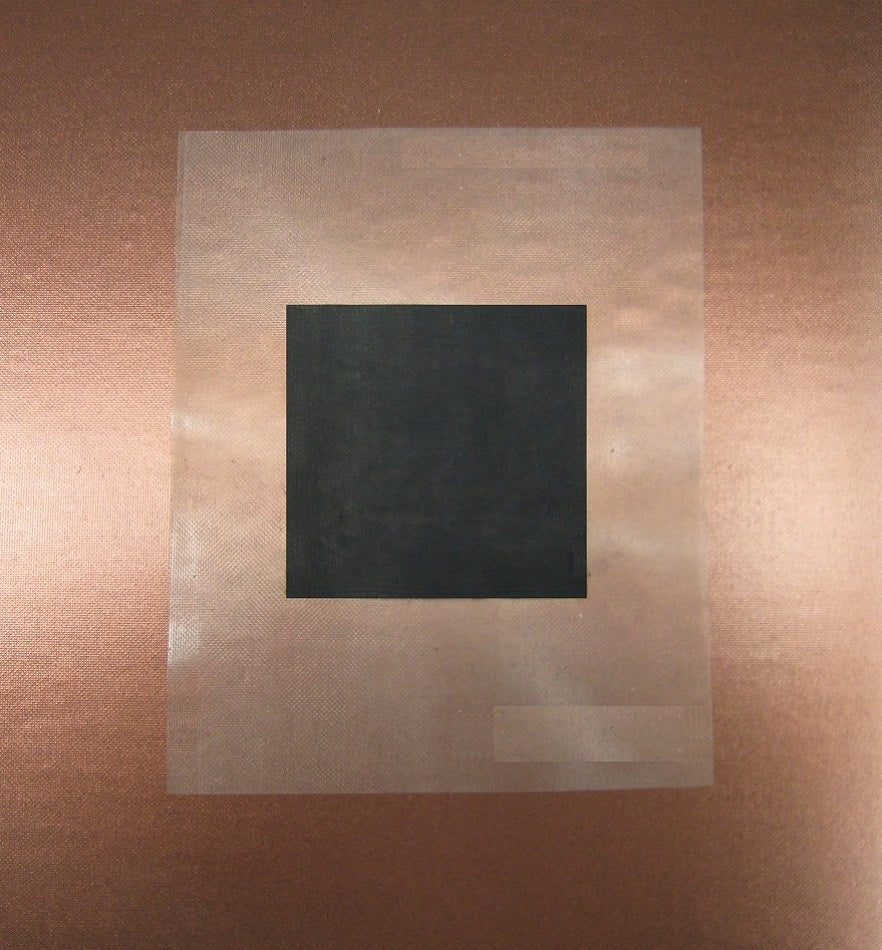

DMFC MEA (3-Layer)
A 3-layer direct methanol fuel cell (DMFC) MEA, also known as a catalyst-coated membrane (CCM), that uses methanol directly without a reformer. DMFC MEAs are often useful in lower power applications. Made with XT Catalysts.
Key specs
- Layer count
- 3-layer (CCM)
- Active area
- 5 cm², 25 cm², 50 cm², 100 cm²
- Membrane thickness
- 183 µm
- Anode catalyst
- Platinum Ruthenium Black
- Anode catalyst loading
- 4.0 mg/cm²
- Cathode catalyst
- XT Platinum Black
- Cathode catalyst loading
- 4.0 mg/cm²
- GDL material
- None
- Application
- Direct methanol fuel cell (DMFC)
DMFC MEA (3-Layer)
Sale price$185.00
Description
Methanol (MeOH) can be utilized directly (without the need for a reformer) with Direct Methanol Fuel Cell (DMFC) Membrane Electrode Assemblies (MEA). It also allows a liquid fuel to be used directly in a fuel cell instead of a gaseous fuel. The DMFC MEA is often useful in lower power applications. The DMFC MEA is a 3-Layer configuration, also known as a Catalyst-Coated Membrane (CCM). Made with XT Catalysts.
| Active Area | Membrane Area |
| 2.2cm x 2.2cm | 10.0cm x 10.0cm |
| 5.0cm x 5.0cm | 10.0cm x 10.0cm |
| 7.1cm x 7.1cm | 12.0cm x 12.0cm |
| 10.0cm x 10.0cm | 12.0cm x 12.0cm |
