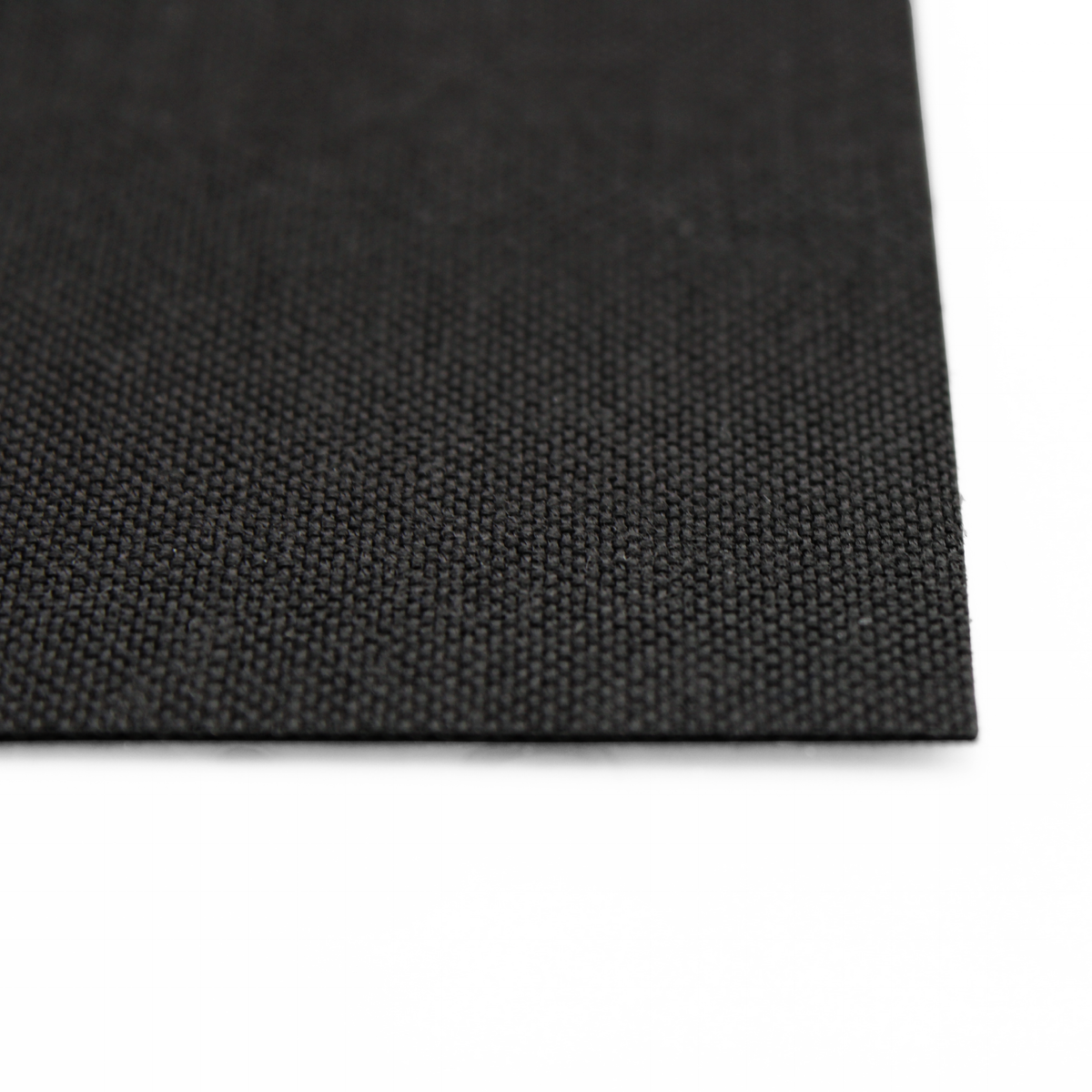

DMFC MEA (5-Layer)
A 5-layer direct methanol fuel cell (DMFC) MEA that uses methanol directly, without a reformer, so a liquid fuel can be used instead of a gaseous one. DMFC MEAs are often useful in lower power applications. Made with XT Catalysts.
Key specs
- Layer count
- 5-layer
- Active area
- 5 cm², 25 cm², 50 cm², 100 cm²
- Membrane thickness
- 183 µm
- Anode catalyst
- Platinum Ruthenium Black
- Anode catalyst loading
- 4.0 mg/cm²
- Cathode catalyst
- XT Platinum Black
- Cathode catalyst loading
- 4.0 mg/cm²
- GDL material
- Carbon cloth
- GDL thickness
- 410 µm
- Application
- Direct methanol fuel cell (DMFC)
DMFC MEA (5-Layer)
Sale price$187.00
Description
Methanol (MeOH) can be utilized directly (without the need for a reformer) with Direct Methanol Fuel Cell (DMFC) Membrane Electrode Assemblies (MEA). It also allows a liquid fuel to be used directly in a fuel cell instead of a gaseous fuel. The DMFC MEA is often useful in lower power applications. The DMFC MEAs are 5-Layer. Made with XT Catalysts.
| Active Area | Membrane Area |
| 2.2cm x 2.2cm | 10.0cm x 10.0cm |
| 5.0cm x 5.0cm | 10.0cm x 10.0cm |
| 7.1cm x 7.1cm | 12.0cm x 12.0cm |
| 10.0cm x 10.0cm | 12.0cm x 12.0cm |
Please note: Membrane Electrode Assemblies containing ruthenium catalysts are supplied as a half MEA and GDE. These (2) pieces are to be mechanically assembled.
