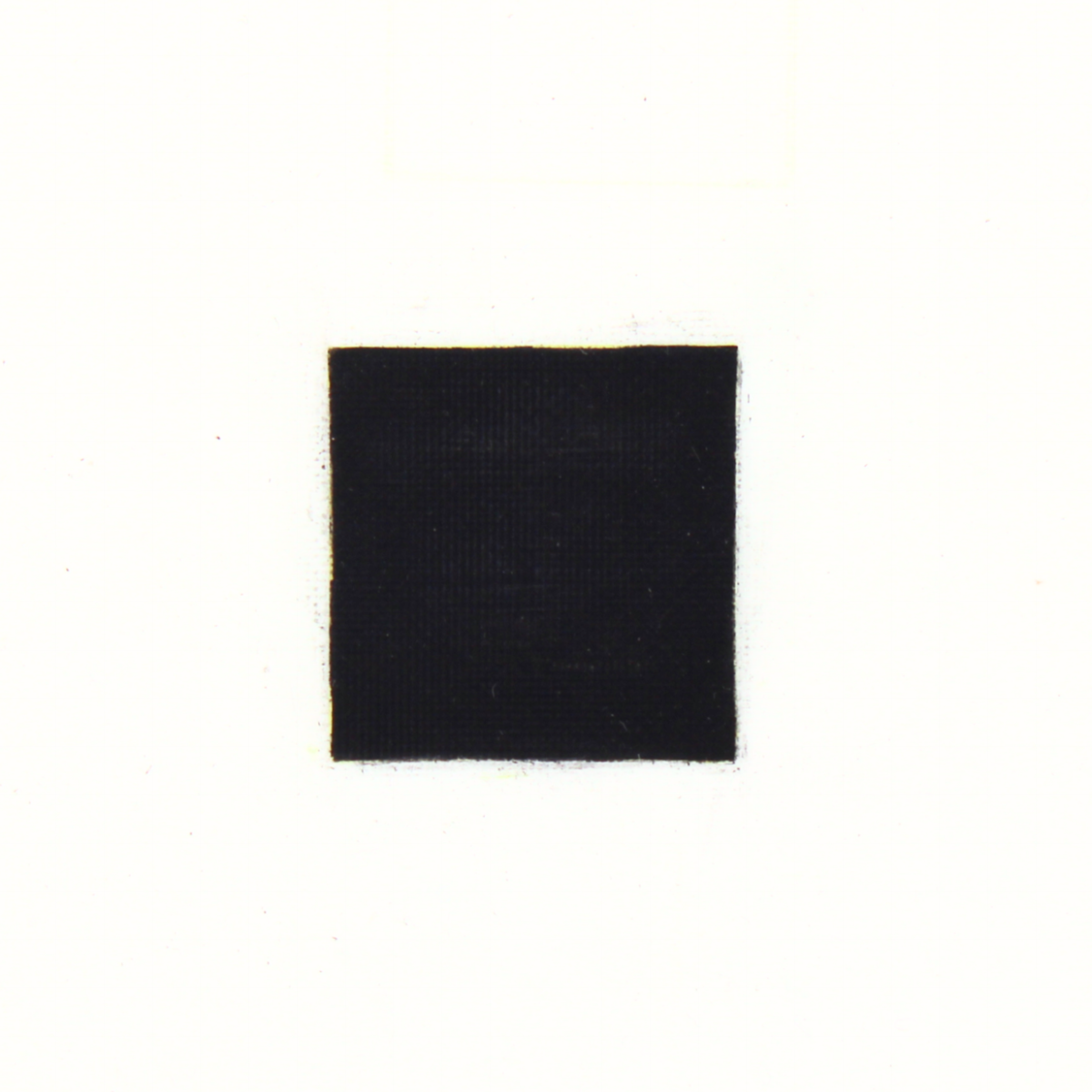

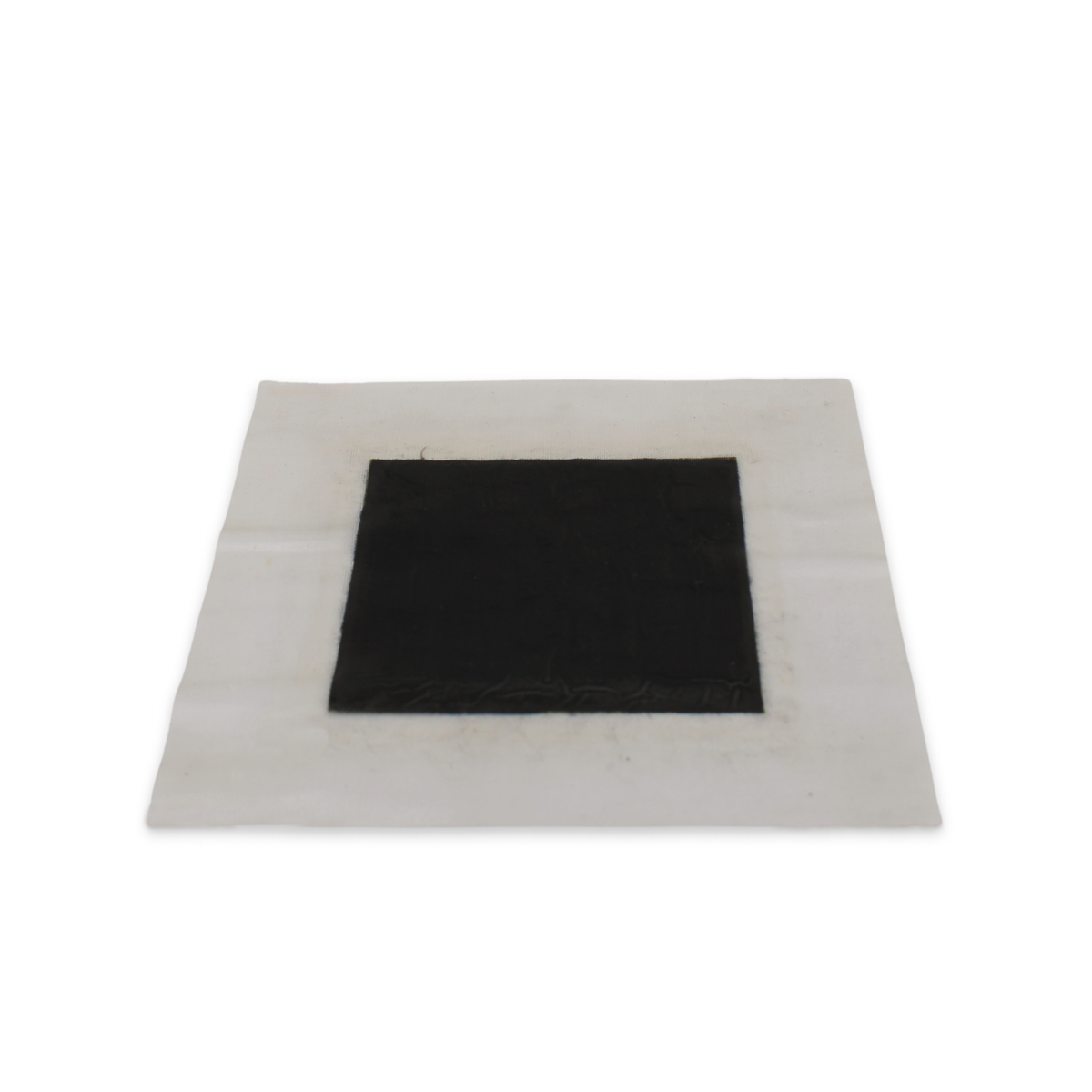

Electrolyzer MEA (3-Layer)
A 3-layer electrolyzer MEA, or catalyst-coated membrane (CCM), for high-efficiency production of hydrogen and oxygen. It is designed to provide some of the highest efficiencies and purest hydrogen via electrolysis. Custom sizes and configurations are available with no minimum order quantities.
Key specs
- Layer count
- 3-layer (CCM)
- Active area
- 5 cm², 25 cm², 50 cm², 100 cm²
- Membrane thickness
- 127 µm
- Anode catalyst
- XT Iridium Ruthenium Oxide
- Anode catalyst loading
- 3.0 mg/cm²
- Cathode catalyst
- XT Platinum Black
- Cathode catalyst loading
- 3.0 mg/cm²
- GDL material
- None
- Application
- Electrolyzer (type not specified)
Electrolyzer MEA (3-Layer)
Sale price$169.00
Description
Electrolyzer Membrane Electrode Assemblies (MEA) for high-efficiency production of Hydrogen and Oxygen. This brand of Electrolyzer MEAs is used by many as their “gold standard” when designing new Electrolyzer products. This Electrolyzer MEA is a 3-layer configuration, or Catalyst-Coated Membrane (CCM), designed to provide some of the highest efficiencies and purest hydrogen via electrolysis. Made with XT Catalysts.
Custom sizes and configurations are available with no minimum order quantities.
| Active Area | Membrane Area |
| 2.2cm x 2.2cm | 10.0cm x 10.0cm |
| 5.0cm x 5.0cm | 10.0cm x 10.0cm |
| 7.1cm x 7.1cm | 12.0cm x 12.0cm |
| 10.0cm x 10.0cm | 12.0cm x 12.0cm |
