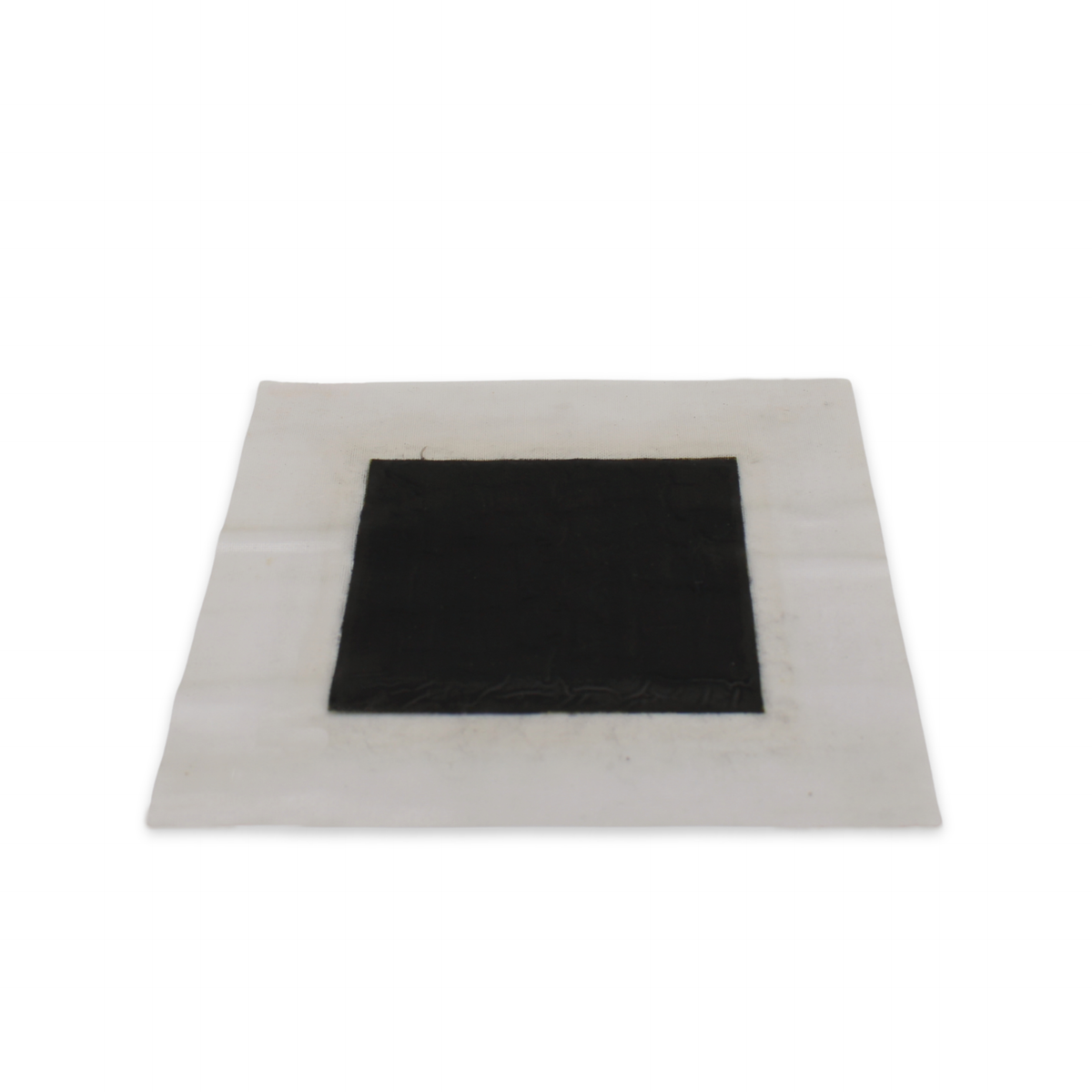

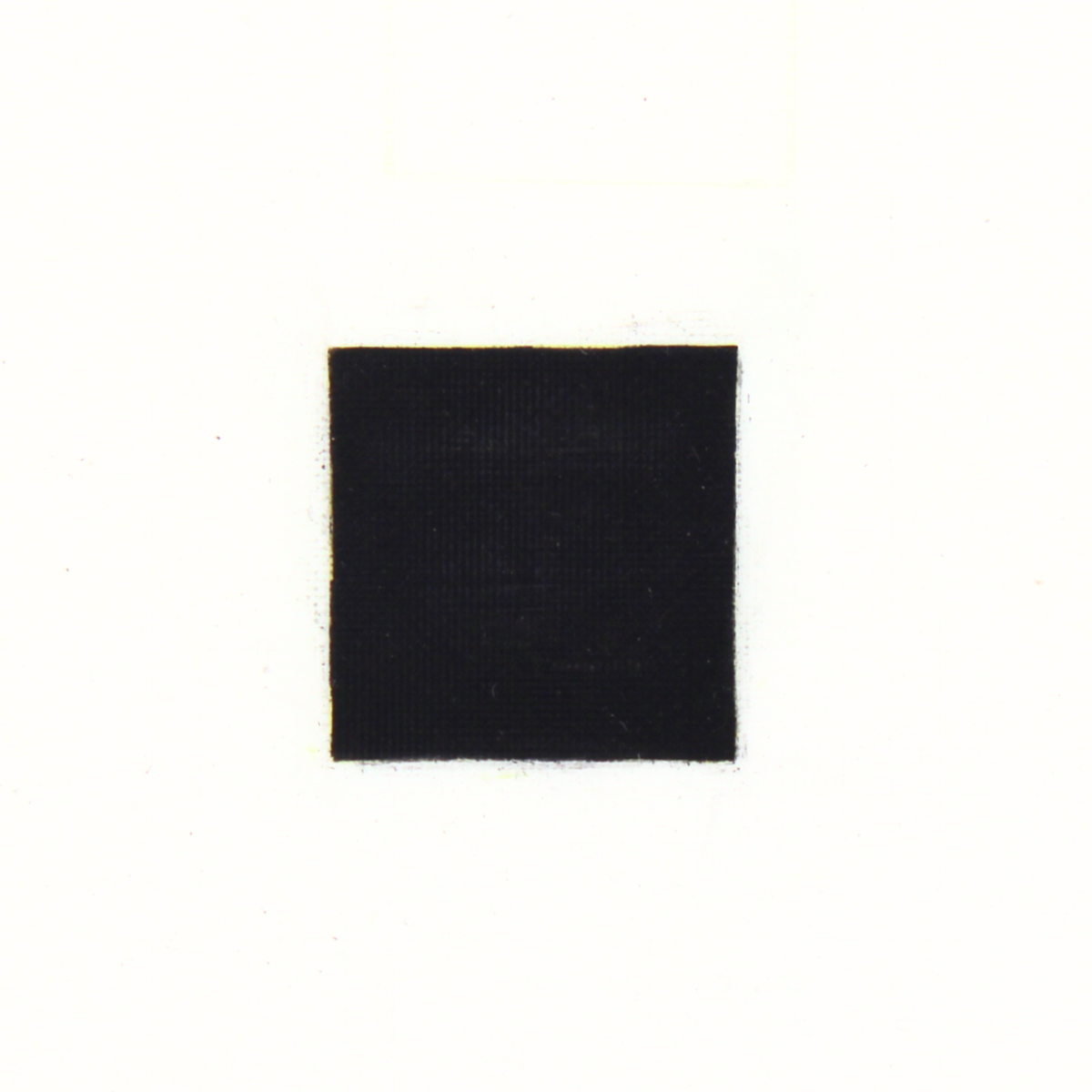

Hydrogen Air MEA (3-Layer)
A 3-layer MEA, or catalyst-coated membrane (CCM), for hydrogen/air fuel cells and one of the most cost-effective MEAs on the market. The standard configuration has a mid-range platinum loading (0.5 mg/cm²) on a 0.002" membrane. Custom sizes and configurations are available with no minimum order quantities.
Key specs
- Layer count
- 3-layer (CCM)
- Active area
- 5 cm², 25 cm², 50 cm², 100 cm²
- Membrane thickness
- 50 µm
- Anode catalyst
- XT 60% Platinum on Vulcan XC-72R
- Anode catalyst loading
- 0.5 mg/cm²
- Cathode catalyst
- XT 60% Platinum on Vulcan XC-72R
- Cathode catalyst loading
- 0.5 mg/cm²
- GDL material
- None
- Application
- PEM fuel cell
Hydrogen Air MEA (3-Layer)
Sale price$153.00
Description
3-Layer MEA, or Catalyst-Coated Membrane (CCM), for use in Hydrogen/Air Fuel Cells. One of the most economical and cost-effective MEAs on the market, the standard configuration features a mid-range Platinum loading (0.5 mg/cm²) on a 0.002” membrane. Made with XT Catalysts.
Custom sizes and configurations are also available with no minimum order quantities.
| Active Area | Membrane Area |
| 2.2cm x 2.2cm | 10.0cm x 10.0cm |
| 5.0cm x 5.0cm | 10.0cm x 10.0cm |
| 7.1cm x 7.1cm | 12.0cm x 12.0cm |
| 10.0cm x 10.0cm | 12.0cm x 12.0cm |
