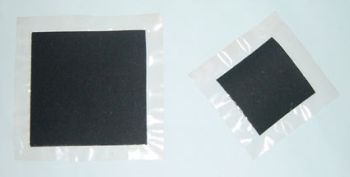

Hydrogen Oxygen MEA (3-Layer)
The 3-layer (CCM) version of the popular 5-layer Hydrogen/Oxygen MEA, for use where performance and efficiency are critical and a free-floating GDL is needed. It works in hydrogen/air or hydrogen/oxygen fuel cells, with a high platinum loading (4 mg/cm²) on a 0.005" membrane. Custom sizes and configurations are available with no minimum order quantities.
Key specs
- Layer count
- 3-layer (CCM)
- Active area
- 5 cm², 25 cm², 50 cm², 100 cm²
- Membrane thickness
- 127 µm
- Anode catalyst
- XT Platinum Black
- Anode catalyst loading
- 4.0 mg/cm²
- Cathode catalyst
- XT Platinum Black
- Cathode catalyst loading
- 4.0 mg/cm²
- GDL material
- None
- Application
- PEM fuel cell
Hydrogen Oxygen MEA (3-Layer)
Sale price$168.00
Description
The 3-layer MEA or Catalyst Coated Membrane (CCM) version of the popular 5-layer Hydrogen/Oxygen MEA, this high performance Membrane Electrode Assembly (MEA) is used where performance and efficiency is critical and when you need a free-floating GDL layer. It can be used in Hydrogen/Air or Hydrogen/Oxygen Fuel Cells. The standard configuration features a high Platinum loading (4 mg/cm²) and a 0.005” membrane. Made with XT Catalysts.
Custom sizes and configurations are also available with no minimum order quantities.
| Active Area | Membrane Area |
| 2.2cm x 2.2cm | 10.0cm x 10.0cm |
| 5.0cm x 5.0cm | 10.0cm x 10.0cm |
| 7.1cm x 7.1cm | 12.0cm x 12.0cm |
| 10.0cm x 10.0cm | 12.0cm x 12.0cm |
