Fuel Cell Hardware
Key specs
- Active area
- 5 cm², 25 cm²
- Plate material
- Graphite
- Standard flow field
- Serpentine
- Heater
- Built-in silicon rubber heaters (40 W), 110 or 220 VAC
- Application
- PEM fuel cell, Direct methanol fuel cell (DMFC)
Description
Fuel Cell Hardware is an electrochemical device that converts chemical fuel, such as hydrogen, natural gas, methanol, etc. into energy and water. This item includes all the key components to make such reactions occur. It also performs compression of the membrane electrode assembly (MEA) while providing uniform gas distribution and uniform temperature to the cell.

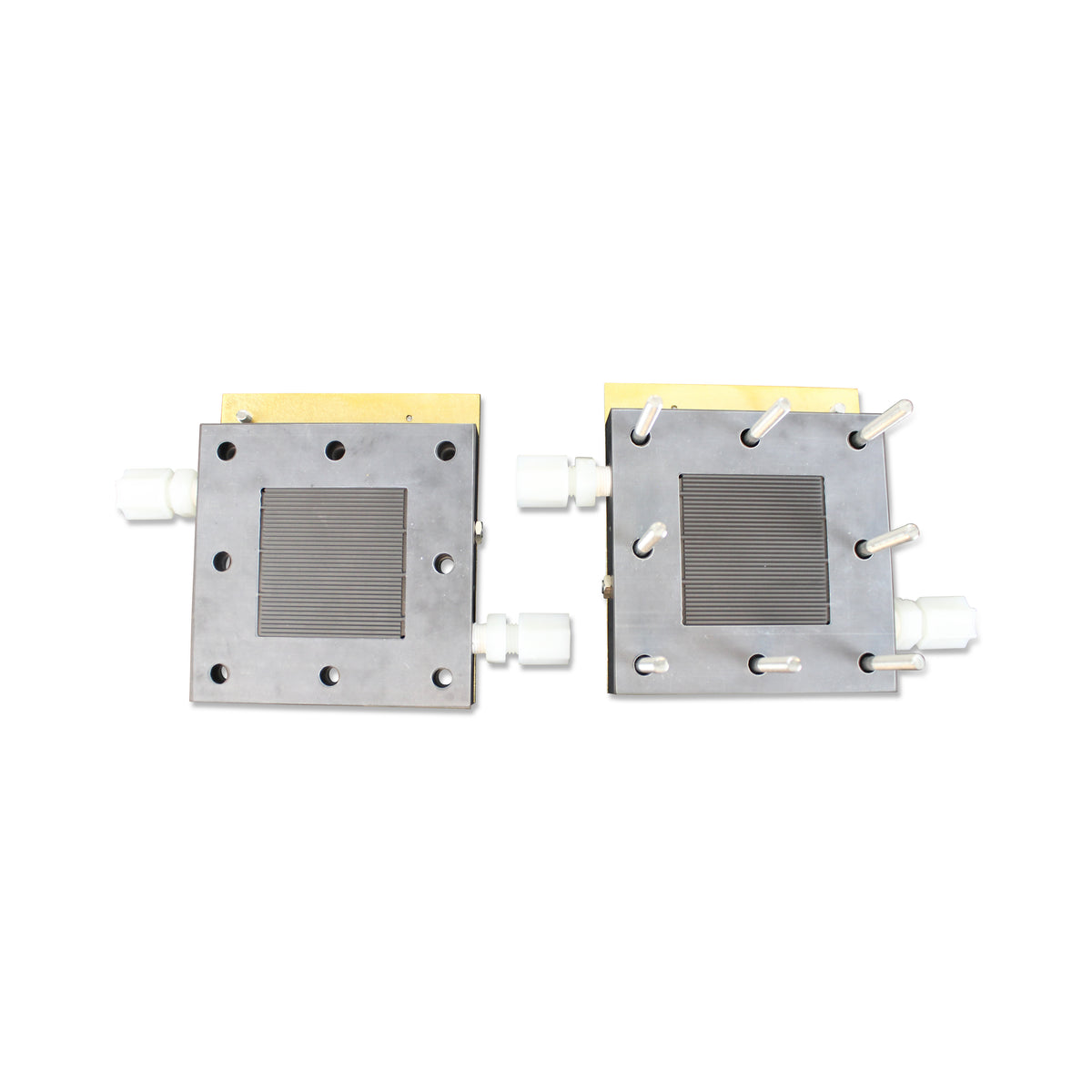

A nickel-plated plate serves as current collector plate for the fuel cell. The nickel plating provides corrosion protection and good electrical contact with the graphite separator plate. A high purity graphite plate with high electrical conductivity (900 Scm-1) and high thermal conductivity (117 Wm-1K-1) is designed with serpentine gas flow channels and manifold. A gasket is included to provide a secure seal for the MEA. High power silicon rubber heaters are installed at both ends of the fuel cell to maintain a constant cell temperature.
Features:
✔ Machined graphite separator plates w/ serpentine flow fields ✔ Nickel-plated current collectors ✔ Banana plugs for monitoring voltage ✔ Belleville washer ✔ Built-in silicon rubber heaters (40 watt) for maintaining cell temperature, with choice of voltages (110 or 220VAC)✔ Nylon fittings for gas tight connection to 1/4" tubing (for active area sizes of 5 and 25 cm²)
Schematic of the Fuel Cell Hardware's Components:
Fuel Cell Hardware is also available with other Flow Field Designs Upon Quotation
- Column / Pin Type
- Serpentine
- Straight Channel
What is a Reference Electrode?
A reference electrode provides more accurate measurement of voltage without the effect of current. The reference electrode is used to measure and monitor the electrochemical polarization behavior of individual anode and cathode electrode independently. A metallic Pt wire is installed as a reference at the fuel cell hardware.
The Pt wire reference electrode is generally located in an open compartment independent of the flow field. However, Hydrogen Reference Electrode's Pt wire is located in an open compartment which is connected to the flow field of the fuel cell.
