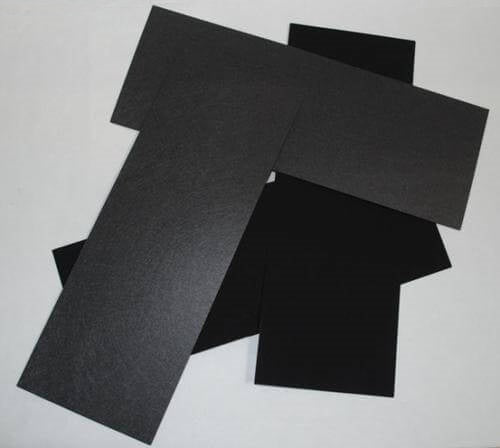

GDE Variety Kit
A discounted kit of 10 platinum-coated carbon cloth gas diffusion electrodes, two each of five types. It includes 0.03, 0.3 and 0.5 mg/cm² platinum on Vulcan and 2 and 4 mg/cm² platinum black. All are made with XT Catalysts.
Key specs
- Catalyst
- 20% Pt/C (Vulcan), 40% Pt/C (Vulcan), 60% Pt/C (Vulcan), Platinum Black
- Catalyst loading
- 0.03 mg/cm², 0.3 mg/cm², 0.5 mg/cm², 2 mg/cm², 4 mg/cm²
- Catalyst metal
- Platinum
- GDL material
- Carbon cloth
- GDL model
- W1S1011
- GDL thickness
- 410 µm
- Microporous layer (MPL)
- Yes
- Nafion post-coat
- Yes
- Application
- PEM fuel cell, Direct methanol fuel cell (DMFC), Microbial / bio fuel cell
GDE Variety Kit
Sale price$272.00
Description
The Gas Diffusion Electrode Variety Kit (also known as the GDE Kit) comes with a variety of 5 different (10 in all) Platinum-coated carbon cloth gas diffusion electrodes at a discounted price! The kit includes two of each of the following types of GDE:
- 0.03 mg/cm² 20% Platinum on Vulcan
- 0.3 mg/cm² 40% Platinum on Vulcan
- 0.5 mg/cm² 60% Platinum on Vulcan
- 2 mg/cm² Platinum Black
- 4 mg/cm² Platinum Black
You can see more specifications and information by clicking the gas diffusion electrode name above.
All of the above GDEs are made with XT Catalysts.
